HarmonyOS 鸿蒙Next 【HM】使用Canvas组件绘制实时闹钟

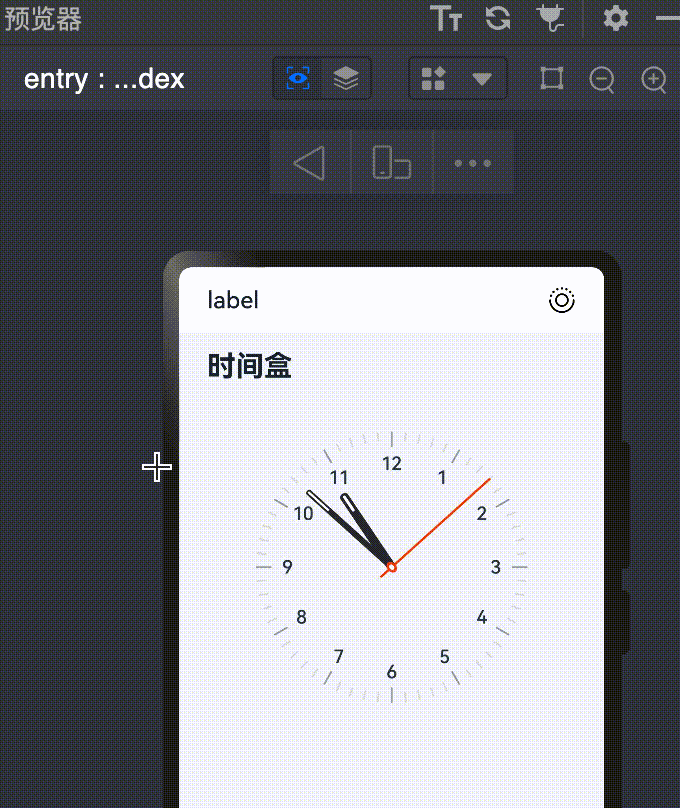

HarmonyOS 鸿蒙Next 【HM】使用Canvas组件绘制实时闹钟 效果如下：

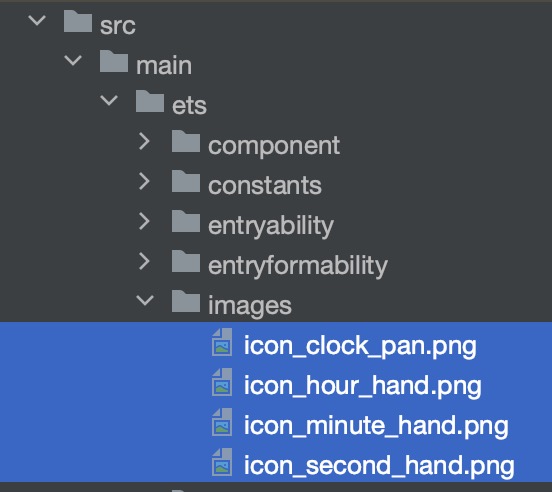

准备图片素材

• 表盘图片：icon_clock_pan.png
• 时针图片：icon_hour_hand.png
• 分针图片：icon_minute_hand.png
• 秒针图片：icon_second_hand.png

使用Canvas组件

1. 创建 CanvasRenderingContext2D 对象

private renderContext: CanvasRenderingContext2D = new CanvasRenderingContext2D(new RenderingContextSettings(true));

1. 设置画布关键属性和事件

// 画布尺寸
private canvasSize: number = 252;
// 绘制间隔时间
private drawInterval: number = -1;
private clockRadius: number = this.canvasSize / 2 - 2;
Canvas(this.renderContext)
        .width(this.canvasSize)
        .aspectRatio(1)
        .onReady(() => {
          if (this.drawInterval === -1) {
            // 开始绘制
            this.startDrawTask();
          }
        })

1. 启动定时任务，每秒绘制一次（与实时时间同步）

/**
* 启动定时绘制任务
*/
private startDrawTask(): void {
  console.log("开始绘制");
  this.renderContext.translate(this.canvasSize / 2, this.canvasSize / 2);
  this.drawClockArea()
  this.drawInterval = setInterval(() => {
    this.drawClockArea()
  }, 1000);
}

1. 绘制闹钟区域

/**
 * 绘制闹钟区域
 */
private drawClockArea(): void {
  console.log("绘制时区");
  let date = new Date();
  let hour = date.getHours();
  let minute = date.getMinutes();
  let second = date.getSeconds();
  this.renderContext.clearRect(
    -this.canvasSize,
    -this.canvasSize / 2,
    this.canvasSize * 2,
    this.canvasSize
  );
  if (true) {
    this.drawClockPan();
    this.drawClockHands(
      30 * (hour > 12 ? hour - 12 : hour)
      + minute / 12 * 6,
      "images/icon_hour_hand.png");
    this.drawClockHands(minute * 6, "images/icon_minute_hand.png");
    this.drawClockHands(second * 6, "images/icon_second_hand.png");
  }

1. 绘制表盘

/**
 * 绘制表盘
 */
private drawClockPan(): void {
  console.log("绘制表盘");
  let imgWidth = this.clockRadius * 2;
  let secondImg = new ImageBitmap("images/icon_clock_pan.png");
  this.renderContext.beginPath();
  this.renderContext.drawImage(
    secondImg,
    -this.clockRadius,
    -this.clockRadius,
    imgWidth, imgWidth);
  this.renderContext.restore();
  console.log(`clockRadius:${-this.clockRadius};imgWidth:${imgWidth}`)
}

1. 绘制时、分、秒针

/**
 * 绘制表针：时针、分针、秒针
 */
private drawClockHands(degree: number, handImgRes: string): void {
  console.log("绘制表针");
  let imgWidth = 10;
  let handImg = new ImageBitmap(handImgRes);
  let theta = (degree + 180) * Math.PI / 180;
  this.renderContext.save();
  this.renderContext.rotate(theta);
  this.renderContext.beginPath();
  this.renderContext.drawImage(
    handImg,
    -imgWidth / 2,
    -this.clockRadius,
    imgWidth,
    this.clockRadius * 2);
  this.renderContext.restore();
}
