HarmonyOS鸿蒙Next中访问阿里云OSS示例代码

介绍

本示例介绍通过URL签名(v4)方式使用API访问阿里云OSS。

访问阿里云OSS源码链接

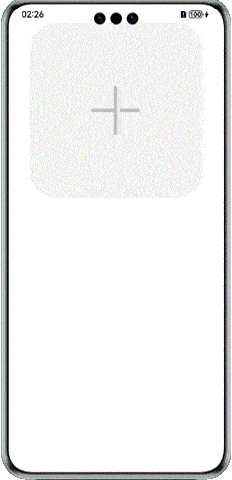

效果预览

使用说明

进入应用后，展示一个加号图标，点击图标即可选择要传输的图片，选择要传输的文件后，应用进行URL签名(v4)方式，即可使用API访问阿里云OSS。

实现思路

构造规范请求字段

参数说明

PUT规范请求

PUT
/examplebucket/oss/path/test/test.txt
x-oss-additional-headers=host&x-oss-credential=accessKeyId%2Fcn-shanghai%2Foss%2Faliyun_v4_request&x-oss-date=20240803T130523Z&x-oss-expires=3600&x-oss-security-token=CAIS87WEEDddsada2F==&x-oss-signature-version=OSS4-HMAC-SHA256
content-type:text/plain
host:examplebucket.oss-cn-shanghai.aliyuncs.com

host
UNSIGNED-PAYLOAD

GET规范请求

GET
/examplebucket/oss/path/test/test.txt
x-oss-additional-headers=host&x-oss-credential=accessKeyId%2Fcn-shanghai%2Foss%2Faliyun_v4_request&x-oss-date=20240803T130523Z&x-oss-expires=3600&x-oss-security-token=CAIS87WEEDddsada2F==&x-oss-signature-version=OSS4-HMAC-SHA256
host:examplebucket.oss-cn-shanghai.aliyuncs.com

host
UNSIGNED-PAYLOAD

签名计算

构造sha256Hex()函数，计算SHA256哈希值。

public sha256Hex(data: string): string {
  let sha256 = cryptoFramework.createMd('SHA256');
  sha256.updateSync({ data: new Uint8Array(buffer.from(data, 'utf-8').buffer) });
  let sha256Output = sha256.digestSync();
  let output = buffer.from(sha256Output.data).toString('hex')
  return output;
}

构造zeroFormat(),获取当前日期和时间（ISO8601格式）。

private zeroFormat(num: number, length: number = 2): string {
  let format = '';
  for (let i = 0; i < (length - num.toString().length); i++) {
    format += '0';
  }
  format += num.toString();
  return format;
}

private dateTimeISO8601(): string {
  let date = new Date();
  let rc = this.zeroFormat(date.getFullYear(), 4) + this.zeroFormat(date.getMonth() + 1) +
  this.zeroFormat(date.getDate()) + 'T' + this.zeroFormat(date.getUTCHours()) +
  this.zeroFormat(date.getMinutes()) + this.zeroFormat(date.getSeconds()) + 'Z';
  return rc;
}

构造canonicalRequest()函数,用以构造规范请求字符串,注意的是以下代码字符串顺序不能改变，否则与阿里云OSS上计算的签名不一致。

private canonicalRequest(method: string, date: string, dateTime: string, pathOss: string, contentType: string = ''): string {
  let canonicalRequest = method + "\n";

  canonicalRequest += this.canonicalURI(pathOss);
  canonicalRequest += this.canonicalQueryString(date, dateTime);

  if (method === 'PUT') {
    canonicalRequest += "content-type:" + contentType + '\n';
  }

  canonicalRequest += 'host:' + this.ossInfo.bucket_name + '.' + this.ossInfo.endpoint + '\n';
  canonicalRequest += '\n';
  canonicalRequest += 'host\n';
  canonicalRequest += 'UNSIGNED-PAYLOAD';

  return canonicalRequest;
}

构造signString()函数,用以构造签名字符串，以下代码字符串顺序不能改变，否则与阿里云OSS上计算的签名不一致

private signString(date: string, dateTime: string, canonical: string): string {
  let stringToSign = '';

  stringToSign += 'OSS4-HMAC-SHA256' + '\n';
  stringToSign += dateTime + '\n';
  stringToSign += date + '/' + this.ossRegion() + '/oss/aliyun_v4_request' + '\n';
  stringToSign += canonical;
  console.log(TAG, "stringToSign: " + stringToSign);

  return stringToSign;
}

构造calcSignature()函数，通过调用三方库CryptoJS方法去计算签名。

private calcSignature(date: string, signString: string): string {
  let dateKey: Uint8Array = CryptoJS.HmacSHA256(date, "aliyun_v4" + this.ossKey.AccessKeySecret);
  let regionKey: Uint8Array = CryptoJS.HmacSHA256(this.ossRegion(), dateKey);
  let regionServiceKey: Uint8Array = CryptoJS.HmacSHA256("oss", regionKey);
  let signingKey: Uint8Array = CryptoJS.HmacSHA256("aliyun_v4_request", regionServiceKey);
  let signature: string = CryptoJS.HmacSHA256(signString, signingKey).toString();
  console.log(TAG, "response: signature: " + signature);
  return signature;
}
