应用简介

本文章是参加“HarmonyOS线上Codelabs系列挑战赛第三期:玩转ArkUI动效”活动写的一个应用介绍,活动地址: https://developer.huawei.com/consumer/cn/forum/topic/0202105184144967482?fid=0101587866109860105

本应用通过对“HarmonyOS”文字,增加简单的animation属性动画和animateTo显性动画,来实现对ArkUI动效的学习。

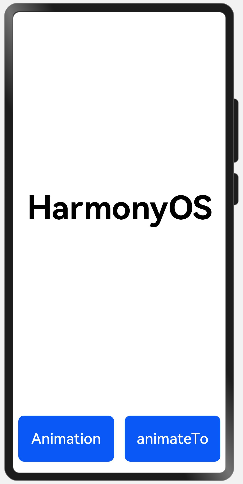

效果预览

效果预览

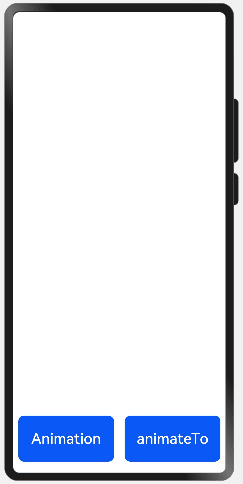

功能简介

中间文字部分就是HarmonyOS文字LOGO,动画分别应用在每个字母上。

功能简介

H、a、r、m、o、n、y这7个字母分别按照从右向左依次间隔着旋转到目标位置,O字母从极大到小的缩放方式,S字母从上到下的位移方式。

底部两个是控制按钮,Animation是播放属性动画的,animatoTo是播放显式动画的。
属性动画的内容,就是上面介绍的文字LOGO中各个字母的运行方式。
显示动画的内容,就是整体LOGO的旋转效果。

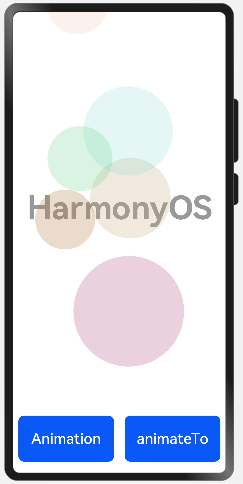

此外,前景还增加了一个冒泡的效果,点击页面,会有大小不一,颜色不同的泡泡从底部冒出来。

前景冒泡

代码解析

代码中用了一个@Extend装饰器,这个装饰器将新的属性函数添加到内置组件上,这样可以精简部分代码。

[@Extend](/user/Extend)(Text) function formatChar () {
  .fontColor(Color.Black)
  .fontSize(55)
  .fontWeight(FontWeight.Bold)
  .align(Alignment.Start)
  .textAlign(TextAlign.Center)
}

LOGO字母都采用的是属性动画,
Harmony每个字母都应用了位移动画和旋转动画,以H字母为例,

Text("H")
  .formatChar()
  .translate({ x: this.offset_x, y: 0 })
  .rotate({
    x: 0,
    y: 0,
    z: 1,
    angle: this.rotate_z,
  })
  .animation({
    duration: 200,
    curve: Curve.LinearOutSlowIn,
    delay: 2200,
    iterations: 1,
    playMode: PlayMode.Normal
  })

字母O使用的缩放属性动画,

Text("O")
  .formatChar()
  .scale({ x: this.O_s, y: this.O_s })
  .animation({
    duration: 500,
    curve: Curve.LinearOutSlowIn,
    delay: 0,
    iterations: 1,
    playMode: PlayMode.Normal
  })

字母S使用的位移属性动画,

Text("S")
  .formatChar()
  .translate({ x: 0, y: this.S_y })
  .animation({
    duration: 500,
    curve: Curve.LinearOutSlowIn,
    delay: 500,
    iterations: 1,
    playMode: PlayMode.Normal
  })

LOGO整体使用了缩放属性动画和透明度属性动画,

Row() {
...
}
.width('100%')
.height('80%')
.justifyContent(FlexAlign.Center)
.scale({ x: this.row_s, y: this.row_s })
.opacity(this.row_o)
.rotate({
  x: 0,
  y: 0,
  z: 1,
  angle: this.row_r,
})
.animation({
  duration: 1000,
  curve: Curve.EaseInOut,
  delay: 2500,
  iterations: 1,
  playMode: PlayMode.Reverse
})

显示动画,是通过animateTo按钮给整体LOGO增加了旋转的效果。

Button('animateTo', { type: ButtonType.Normal})
  .borderRadius(10)
  .fontSize(25)
  .onClick((event: ClickEvent) => {
    if (this.flag) {
      animateTo({
        duration: 1000,
        curve: Curve.EaseInOut,
        delay: 0,
        iterations: 1,
        playMode: PlayMode.Normal,
        onFinish: () => {}
      }, () => {
        this.row_r = 0
      })
    } else {
      animateTo({
        duration: 1000,
        curve: Curve.EaseInOut,
        delay: 0,
        iterations: 1,
        playMode: PlayMode.Normal,
        onFinish: () => {}
      }, () => {
        this.row_r = 360
      })
    }
    this.flag = !this.flag;
  })
  .width('45%')
  .height('10%')

前景泡泡的显示,也是通过属性动画实现的。

@Builder RandomCircle() {
  Circle()
    .size({ width: Math.floor(Math.random() * 100) + 100, height: Math.floor(Math.random() * 100) + 100 })
    .fillOpacity(0.5)
    .fill('rgb(' + Math.floor(Math.random() * 255) + ', ' + Math.floor(Math.random() * 255) + ', ' + Math.floor(Math.random() * 255) + ')')
    .position({ x: Math.floor(Math.random() * 200), y: this.start_y })
    .opacity(this.opac_value)
    .animation({
      duration: Math.floor(Math.random() * 4000) + 2000,
      curve: Curve.EaseInOut,
      delay: 100,
      iterations: -1,
      playMode: PlayMode.Normal
    })
    .onAppear(() => {})
}

项目小结

ArkUI动效功能很丰富,使用也不复杂,但要想做出好的效果,就需要有好的创意了。


更多关于【第三期】HarmonyOS鸿蒙Next中给LOGO增加ArkUI动效的实战教程也可以访问 https://www.itying.com/category-93-b0.html

3 回复

请问预览效果的gif是什么软件录制的?

更多关于【第三期】HarmonyOS鸿蒙Next中给LOGO增加ArkUI动效的实战系列教程也可以访问 https://www.itying.com/category-93-b0.html


在HarmonyOS鸿蒙Next中,给LOGO增加ArkUI动效可以通过以下步骤实现:

  1. 创建ArkUI组件:首先,在项目中创建一个ArkUI组件,用于承载LOGO和动效。可以使用Image组件来加载LOGO图片。

  2. 定义动画效果:使用ArkUI的动画API定义所需的动效。例如,可以使用Animation类来创建旋转、缩放、平移等动画效果。

  3. 绑定动画到LOGO:将定义好的动画效果绑定到LOGO组件上。可以通过start方法启动动画,并通过stop方法停止动画。

  4. 控制动画触发:根据需求,设置动画的触发条件。例如,可以在页面加载时自动播放动画,或者通过用户交互(如点击)来触发动画。

  5. 优化性能:确保动画的流畅性,避免过度消耗系统资源。可以通过调整动画的持续时间、帧率等参数来优化性能。

示例代码片段如下:

import { Image, Animation } from '@ohos.arkui';

// 创建Image组件加载LOGO
const logoImage = new Image();
logoImage.src = 'logo.png';

// 定义旋转动画
const rotateAnimation = new Animation({
    duration: 1000, // 动画持续时间
    iterations: Infinity, // 无限循环
    easing: 'linear' // 线性变化
});
rotateAnimation.rotate(0, 360); // 从0度旋转到360度

// 绑定动画到LOGO
logoImage.animation = rotateAnimation;

// 启动动画
rotateAnimation.start();

通过以上步骤,可以在HarmonyOS鸿蒙Next中为LOGO添加ArkUI动效,提升用户体验。

在HarmonyOS鸿蒙Next中,可以通过ArkUI框架为LOGO添加动效。首先,在项目中创建一个ArkUI组件,使用CanvasAnimation组件来实现动画效果。通过Keyframe定义关键帧动画,设置translaterotate等属性实现LOGO的移动、旋转等效果。最后,将动画绑定到LOGO组件上,触发动画播放。代码示例如下:

import { Animation, Keyframe } from '@ohos.animation';

const logoAnimation = new Animation({
  keyframes: [
    new Keyframe({ translateX: 0, rotate: 0 }, 0),
    new Keyframe({ translateX: 100, rotate: 360 }, 1000)
  ],
  duration: 1000,
  iterations: Infinity
});

logoAnimation.play();

通过这种方式,可以为LOGO添加流畅的动效,提升用户体验。
