HarmonyOS鸿蒙Next万能卡片-Codelabs挑战赛：云函数计算十二生肖卡片

HarmonyOS鸿蒙Next万能卡片-Codelabs挑战赛：云函数计算十二生肖卡片 应用介绍
云函数计算十二生肖卡片，是参考学习了狼哥一篇云函数计算十二生肖旧文章，在API9 3.1版本环境下改进和优化端侧云函数入口调用和UI界面，顺便做成卡片形式的简单应用。

• 元服务卡片，在桌面上添加2x2元服务卡片，能够显示当前年份和生肖。
• 根据选择的年份，云函数计算生肖后返回端侧显示生肖。

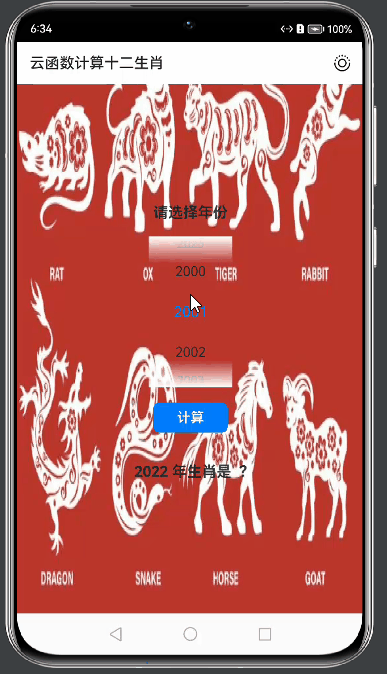

云函数端侧开发和测试

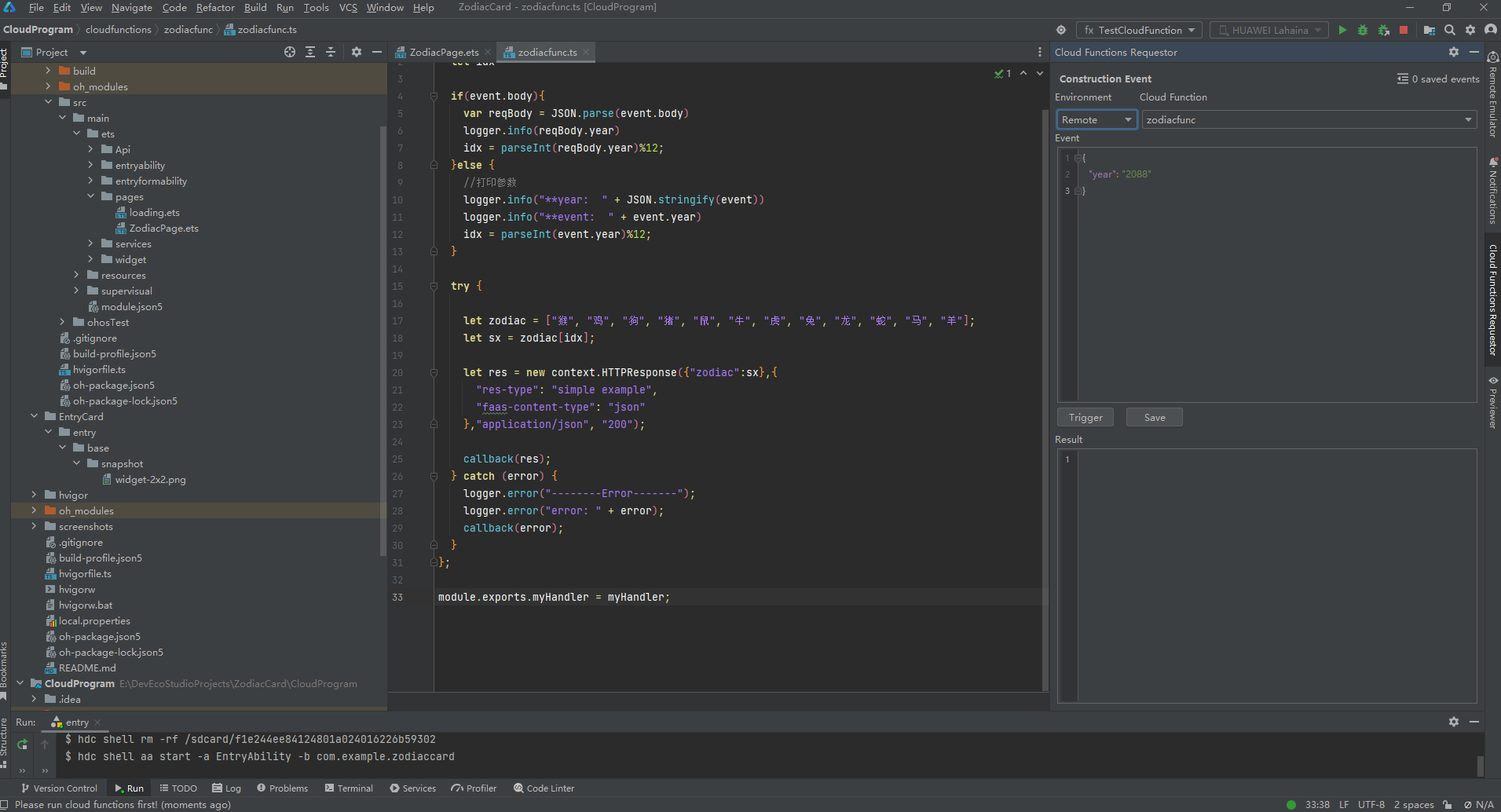

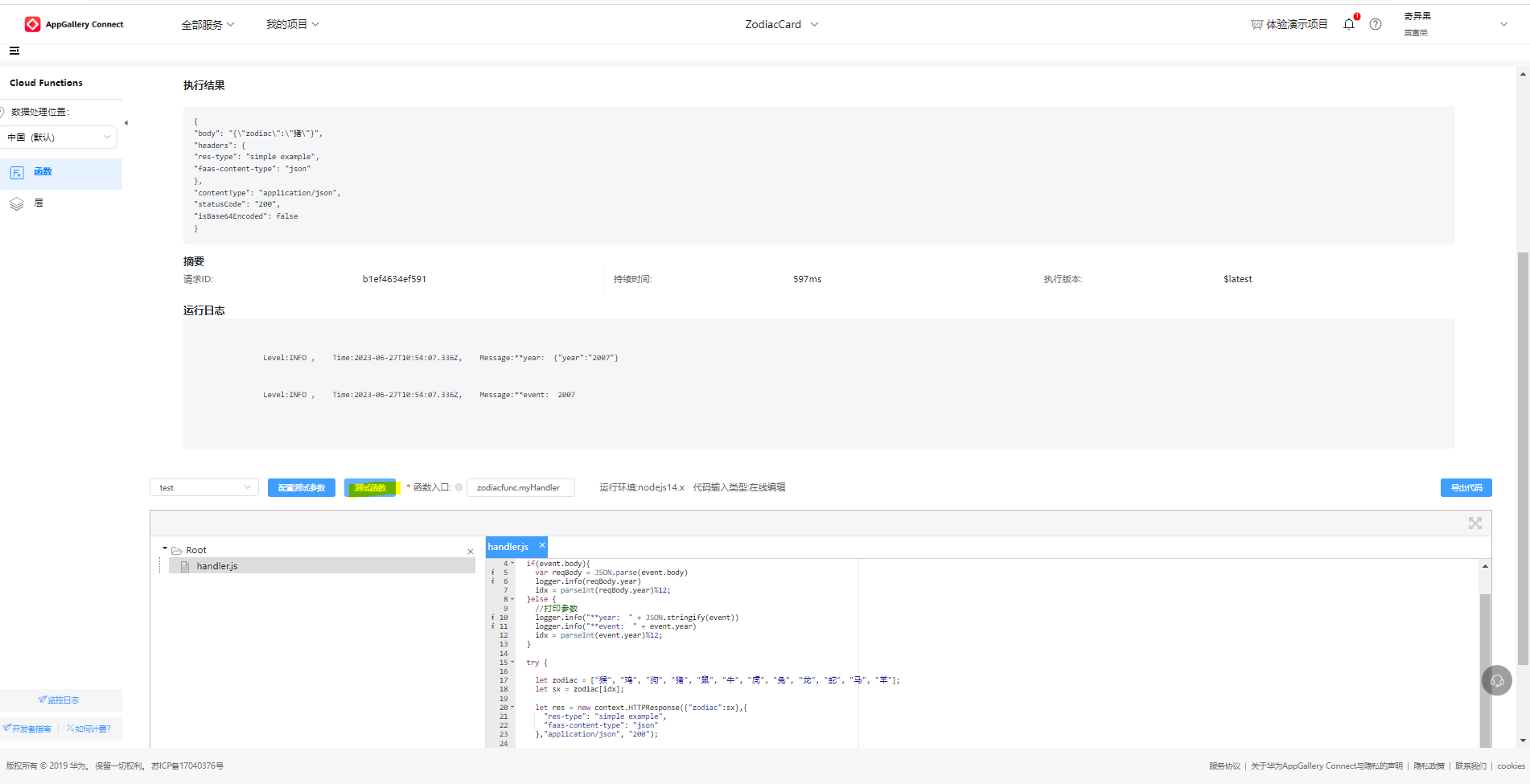

云函数云侧测试

主界面开发代码：

import { Logger } from '[@ohos](/user/ohos).hilog';
import { Request } from '../Api/Index';
import { Loading } from './loading';

@Entry
@Componentstruct ZodiacPage {
  private zodiac: Array<string> = ["猴", "鸡", "狗", "猪", "鼠", "牛", "虎", "兔", "龙", "蛇", "马", "羊"];
  @State year: string = "2022"
  private select: number = 1
  private yearRange: string[] = ['2000','2001','2002','2003','2004','2005','2006','2007','2008','2009','2010','2011','2012','2013','2014','2015','2016','2017','2018','2019','2020','2021','2022','2023']
  @State born: string = "?"
  @State loading: boolean = false
  build() {
    Stack(){
      Image($rawfile('background.JPG'))
        .width('100%')
        .height('100%')
        .objectFit(ImageFit.Fill)
      Column({space: 20}) {
        Text('请选择年份')
          .fontSize(20)
          .fontWeight(FontWeight.Bold)
        TextPicker({ range: this.yearRange, selected: this.select })
          .onChange((value: string, index: number) => {
            console.info('Picker item changed, value: ' + value + ', index: ' + index)
            this.year = value
          })
        // 计算按钮操作
        Button('计算', {type: ButtonType.Normal, stateEffect: true})
          .fontSize(18)
          .borderRadius(8)
          .width(100)
          .margin({bottom: 20})
          .onClick(() => {
            // 根据年份计算生肖
            this.getBorn()
          })
        if (this.loading) {
          Loading()
        }else{
          // 显示计算结果
          Text(`${this.year} 年生肖是  ${this.born}`)
            .fontSize(20)
            .fontWeight(FontWeight.Bold)
        }
      }
      .width('100%')
      .height('100%')
      .padding({top: '33%'})
    }
  }

  //eTS端计算十二生肖
  // getBorn() {
  //     let idx = this.year%12
  //     this.born = this.zodiac[idx]
  // }
  //eTS端调用云函数计算十二生肖
  async getBorn() {
    this.loading = true
    let params = {
      "year": this.year
    }
    var JsonObject = await Request.invoke('zodiacfunc-$latest', params)
    this.born = JsonObject.zodiac
    Logger.error(1,"error",JSON.stringify(this.born))
    if(this.born != '?'){
      this.loading = false
    }
  }
}

卡片界面开发代码：

@Entry
@Componentstruct WidgetCard {
  readonly MAX_LINES: number = 1;
  readonly ACTION_TYPE: string = 'router';
  readonly MESSAGE: string = '请点击计算十二生肖';
  readonly ABILITY_NAME: string = 'EntryAbility';
  readonly FULL_WIDTH_PERCENT: string = '100%';
  readonly FULL_HEIGHT_PERCENT: string = '100%';
  private zodiac: Array<string> = ["猴", "鸡", "狗", "猪", "鼠", "牛", "虎", "兔", "龙", "蛇", "马", "羊"];
  @State year: string = "2022"
  @State born: string = "?"
  aboutToAppear() {
    let date = new Date();
    this.year = date.getFullYear().toString()
    let idx = parseInt(this.year)%12
    this.born = this.zodiac[idx]
  }
  build() {
    Stack() {
      Image($rawfile('background.JPG'))
        .width(this.FULL_WIDTH_PERCENT)
        .height(this.FULL_HEIGHT_PERCENT)
        .objectFit(ImageFit.Fill)
      Column({space: 20}) {
        Text('请点击计算十二生肖')
          .fontSize(12)
          .fontWeight(FontWeight.Bold)
        // 显示计算结果
        Text(`${this.year} 年生肖是 `+ `${this.born}`)
          .fontSize(15)
          .fontWeight(FontWeight.Bold)
      }
      .width('100%')
      .height('100%')
      .padding({top: '33%'})
    }
    .width(this.FULL_WIDTH_PERCENT)
    .height(this.FULL_HEIGHT_PERCENT)
    .onClick(() => {
      postCardAction(this, {
        "action": this.ACTION_TYPE,
        "abilityName": this.ABILITY_NAME,
        "params": {
          "message": this.MESSAGE
        }
      });
    })
  }
}

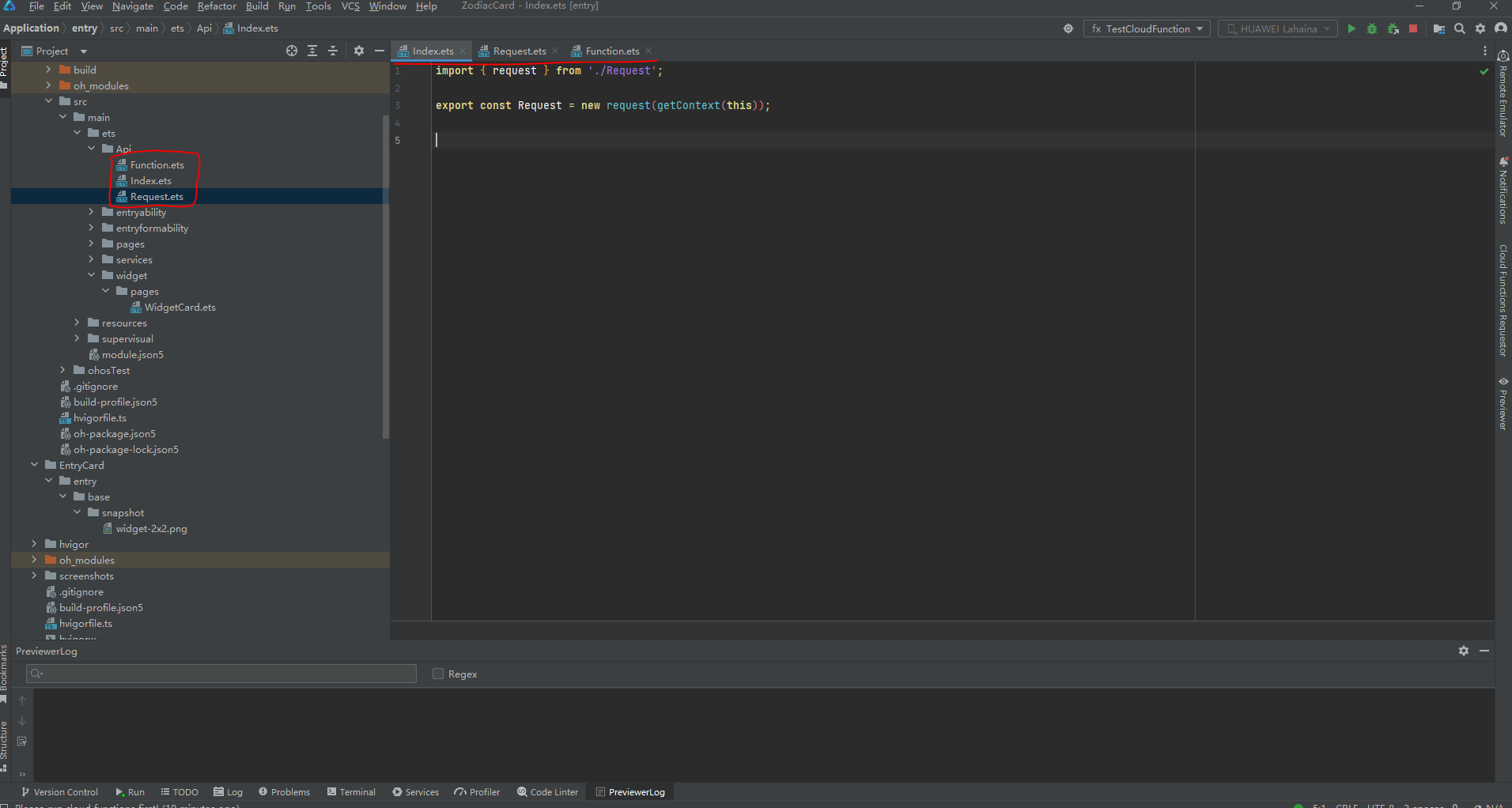

界面云函数入口代码：

Index.ets代码如下：

import { request } from './Request';
export const Request = new request(getContext(this));

Request.ets代码如下：

import { Function } from './Function';
// 云函数请求类
export class request {
  private function: Function;
  constructor(context) {
    this.function = Function.instance(context);
  }
  async invoke(trigger?: string, params?: object) {
    return await this.function.call(trigger, params);
  }
}

Function.ets代码如下：

import { Logger } from '[@ohos](/user/ohos).hilog';
import agconnect from '[@hw-agconnect](/user/hw-agconnect)/api-ohos';
import "[@hw-agconnect](/user/hw-agconnect)/core-ohos";
import "[@hw-agconnect](/user/hw-agconnect)/credential-ohos";
import "[@hw-agconnect](/user/hw-agconnect)/function-ohos";
// 云函数工具类
export class Function {
  static _instance: Function;
  constructor(context) {
    this.initAgc(context);
  }
  static instance(context) {
    if (!Function._instance) {
      Function._instance = new Function(context);
    }
    return Function._instance;
  }
  private async initAgc(context) {
    try {
      agconnect.instance().init(context);
      let credentialService = agconnect.credential();
      await credentialService!.removeToken();
      Logger.info(0, "Function", "init AGC SDK success");
    } catch (err) {
      Logger.error(0, "Function", "initAgcSDK failed" + err);
    }
  }
  // 调用云函数计算十二生肖
  async call(trigger,params) {
    try {
      let functionCallable = agconnect.function().wrap(trigger);
      let functionResult = await functionCallable.call(params);
      return functionResult.getValue();
      //return functionResult.getValue().result;;
    } catch (err) {
      Logger.error(0, "Function", 'catch a err: ' + err);
    }
  }
}

### 总结
通过开发和测试云函数，进行端云一体化开发元服务卡片，收获不少知识和经验，特别是云测和端侧测试云函数调用时是不一样的，暂时的坑可能需要华为官方以后更新，参考了狼哥的一篇云函数计算十二生肖旧文章（好像他本人删除，找不到引用文章）， 总结这个项目用到以下知识点：

- 使用端云一体化开发元服务卡片
- 开发和测试云函数
