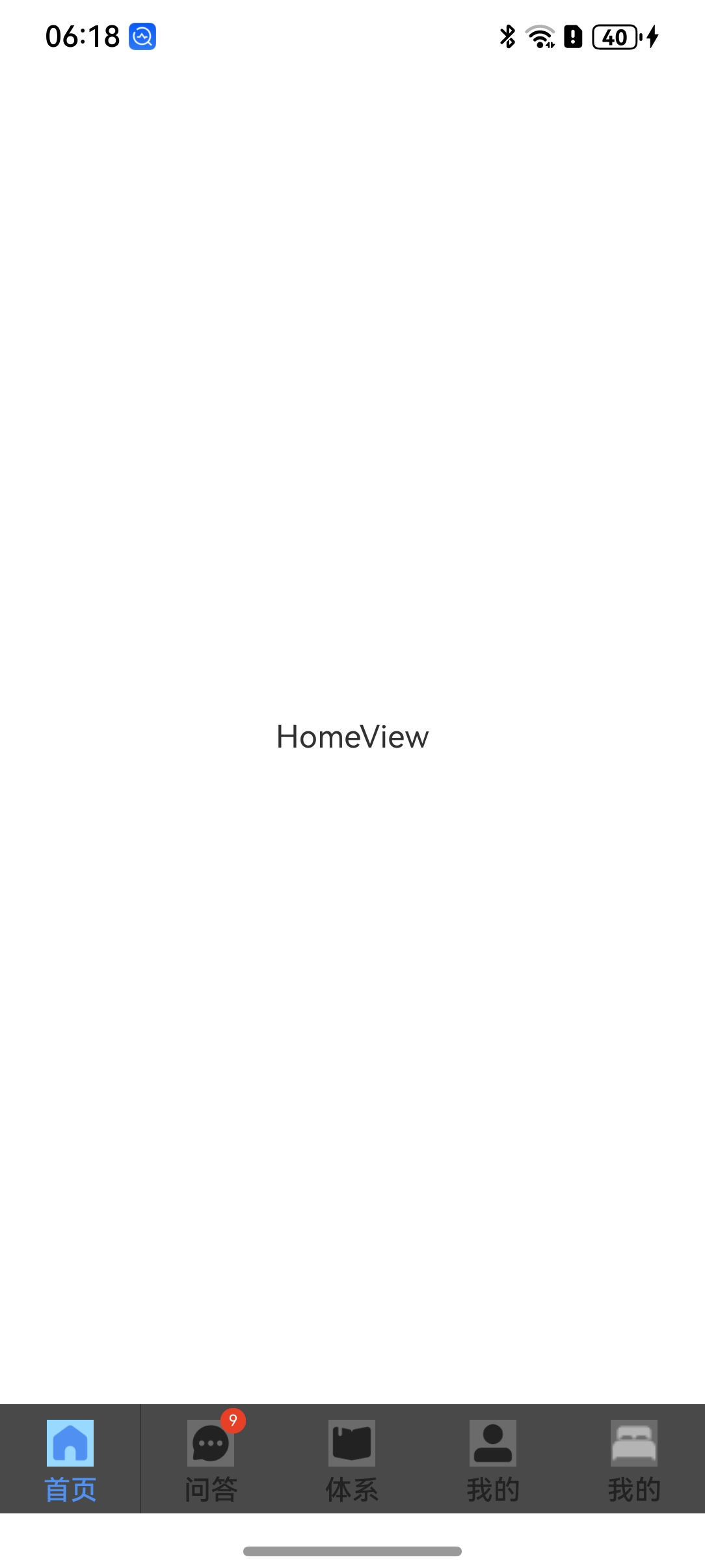

HarmonyOS鸿蒙Next中为什么使用Tabs组件的tabbar,在子元素有五个时会出现一条分隔线?

HarmonyOS鸿蒙Next中为什么使用Tabs组件的tabbar,在子元素有五个时会出现一条分隔线?


代码如下:

主文件:

import { Route, ZRouter } from "@hzw/zrouter"
import { AppUtil, ToastUtil } from "@pura/harmony-utils"
import { HomeView } from "home"
import { MineView } from "mine"
import { QuestionView } from "question"
import { SchemeView } from "scheme"
import { TabModel } from "uicomponents"
import { CommonConst, NavName } from "utils"
import { tabBarModel } from "../model/MainModel"

/**
 * Author:J
 * Describe: 主页
 */

// 定义一个状态变量来记录上次点击返回键的时间
let lastBackPressedTime = 0

@Preview
@ComponentV2
@Route({ name: NavName.MAIN_PAGE })
export struct MainPage {
  @Local selectedIndex: number = 0 // 当前选中的tab下标
  @Local msgCount: number = 9 // 消息数量
  //存储页面状态
  @Local tabContentArr: boolean[] = [true, false, false, false]

  aboutToAppear(): void {
    console.log(`xxx : ---` + 'MainPage')
    console.log(`xxx获取参数 : ---` + ZRouter.getInstance().getParamByName(NavName.MAIN_PAGE))

  }

  build() {
    NavDestination() {
      Stack() {
        Tabs({ index: this.selectedIndex, barPosition: BarPosition.End }) {
          ForEach(tabBarModel, (item: TabModel, index: number) => {
            TabContent() {
              if (this.selectedIndex === index || this.tabContentArr[index]) {
                this.tabContentBuilder(item)
              }
            }.tabBar(this.tabBottom(tabBarModel[item.index], item.index))
          }, (item: string) => item)

        }.barWidth(CommonConst.FULL_PARENT)
        .barHeight(56) //设置导航栏高度
        .scrollable(false) // 禁止左右滑动
        .onChange((index: number) => {
          this.selectedIndex = index;
          this.tabContentArr[index] = true;
        })
      }.width(CommonConst.FULL_PARENT)
      .height(CommonConst.FULL_PARENT)
    }.hideTitleBar(true)
    .width(CommonConst.FULL_PARENT)
    .height(CommonConst.FULL_PARENT)
    .onBackPressed(() => {
      const currentTime = new Date().getTime()
      const timeDifference = currentTime - lastBackPressedTime
      if (timeDifference < 2000) { // 2秒内再次点击
        //退出应用
        AppUtil.exit()
      } else {
        // 提示用户
        ToastUtil.showToast('再按一次退出应用')
        lastBackPressedTime = currentTime
      }

      return true
    })

  }

  @Builder
  tabContentBuilder(item: TabModel) {
    if (item.index == 0) {
      // 首页
      HomeView()
    } else if (item.index == 1) {
      // 问答
      QuestionView()
    } else if (item.index == 2) {
      // 体系
      SchemeView()
    } else if (item.index == 3) {
      // 我的
      MineView()
    }

  }

  @Builder
  tabBottom(item: TabModel, index: number) {
    Column() {

      Badge({
        count: index != 1 ? 0 : this.msgCount,
        position: BadgePosition.RightTop,
        style: {
          fontSize: 8,
          badgeSize: 13
        }
      }) {
        Image(item.selectImage /*this.selectedIndex == index ? item.selectImage : item.unSelectImage*/)
          .colorBlend(this.selectedIndex == index ? $r('app.color.colorPrimary') : $r('app.color.color_222222'))
          .height(24)
          .margin(4)
      }.margin({ top: 4 })

      Text(item.title)
        .width(CommonConst.FULL_PARENT)
        .fontSize(14)
        .fontWeight(500)
        .textAlign(TextAlign.Center)
        .fontColor(this.selectedIndex == index ? $r('app.color.colorPrimary') : $r('app.color.color_222222'))
        .margin({ bottom: 4 })
    }
    .width(CommonConst.FULL_PARENT)
    .height(CommonConst.FULL_PARENT)
    .backgroundColor('#cc1C1C1D')

  }
}

model文件:

import { TabModel } from "uicomponents";


/**
 * 首页底部Tab显示数据
 */
export const tabBarModel: Array<TabModel> = [
  {
    index: 0,
    title: '首页',
    selectImage: $r('app.media.ic_bottom_bar_home'),
  },
  {
    index: 1,
    title: '问答',
    selectImage: $r('app.media.ic_bottom_bar_ques'),
  },
  {
    index: 2,
    title: '体系',
    selectImage: $r("app.media.ic_bottom_bar_scheme"),
  },
  {
    index: 3,
    title: '我的',
    selectImage: $r('app.media.ic_bottom_bar_mine'),
  }
,
  // {
  //   index: 4,
  //   selectImage:$r('app.media.ictab'),
  //   title: '我的',
  //
  // }
]

更多关于HarmonyOS鸿蒙Next中为什么使用Tabs组件的tabbar,在子元素有五个时会出现一条分隔线?的实战教程也可以访问 https://www.itying.com/category-93-b0.html

2 回复

在HarmonyOS鸿蒙Next中,Tabs组件的tabbar出现分隔线是系统默认设计行为。当tabbar子元素数量超过4个时,系统会自动添加分隔线以提升视觉区分度。该设计遵循鸿蒙UX设计规范,目的是防止过多tab项造成拥挤感。分隔线样式由系统主题控制,开发者无法直接通过组件属性关闭,但可以通过自定义tabbar样式覆盖默认实现。

更多关于HarmonyOS鸿蒙Next中为什么使用Tabs组件的tabbar,在子元素有五个时会出现一条分隔线?的实战系列教程也可以访问 https://www.itying.com/category-93-b0.html


这是HarmonyOS Next中Tabs组件的默认设计行为。当tabbar子元素数量达到5个时,系统会自动添加一条分隔线来提升视觉区分度。这是系统内置的样式规则,主要出于以下考虑:

  • 交互设计规范:5个及以上tab项时,分隔线可以帮助用户更清晰地区分各个tab
  • 视觉平衡:防止过多tab项造成视觉拥挤
  • 一致性:保持与其他系统应用的设计语言统一

解决方法:

  1. 如果不需要分隔线,可以通过自定义样式覆盖:

    Tabs() {
      // tab内容
    }.barStyle({ divider: null })

  2. 或者调整bar的背景色来隐藏分隔线:

    .backgroundColor('#cc1C1C1D') // 使用与分隔线相同的颜色
