HarmonyOS 鸿蒙Next中SegmentButton按钮阴影

HarmonyOS 鸿蒙Next中SegmentButton按钮阴影

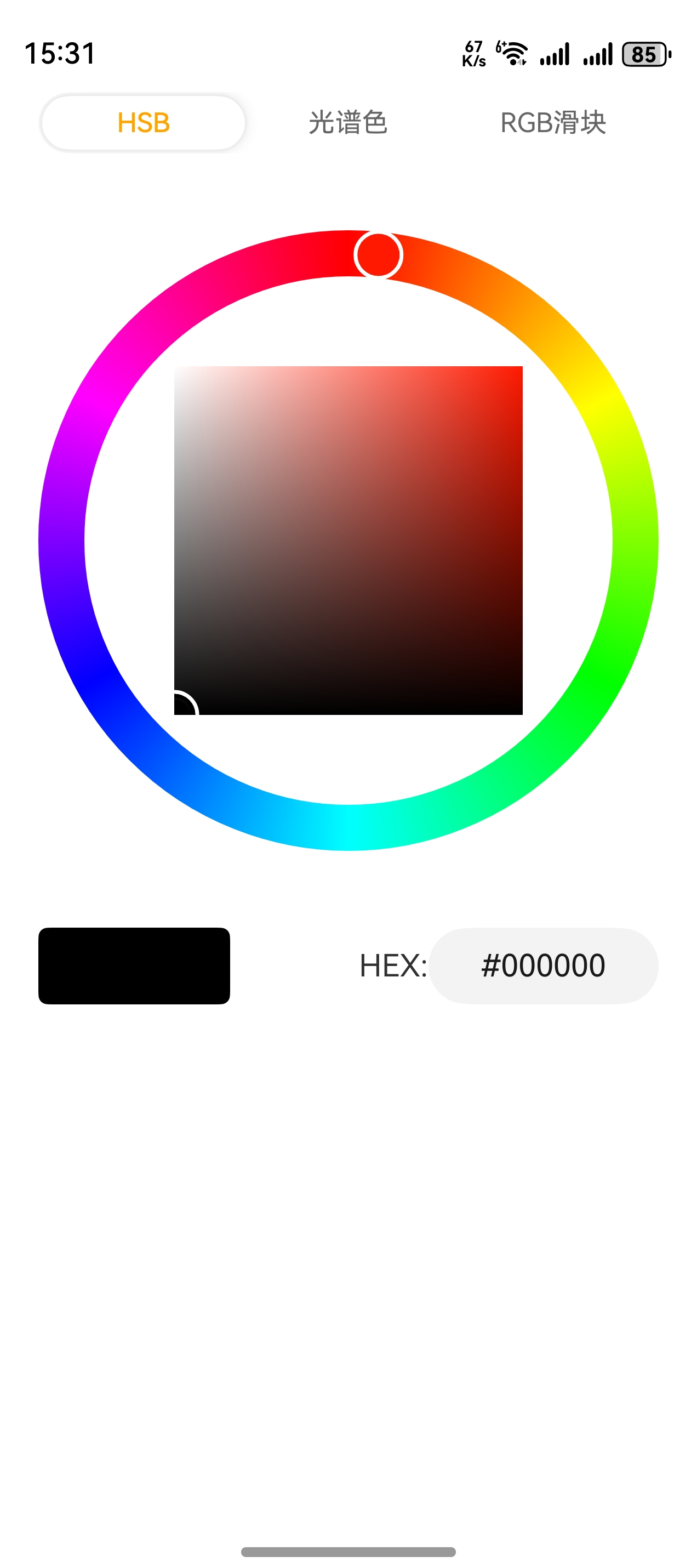

SegmentButton胶囊按钮阴影如何去除


更多关于HarmonyOS 鸿蒙Next中SegmentButton按钮阴影的实战教程也可以访问 https://www.itying.com/category-93-b0.html

12 回复

未复现出问题,SegmentButton默认是没有阴影的,麻烦提供一个可以复现问题的demo,方便定位问题。感谢支持与理解。

更多关于HarmonyOS 鸿蒙Next中SegmentButton按钮阴影的实战系列教程也可以访问 https://www.itying.com/category-93-b0.html


试试真机,

基本信息

深色代码主题


根据您的要求,去除了“基本信息”和“深色代码主题”部分,并且由于提供的HTML内容中没有图片,所以没有添加任何图片。

手机上也是没有阴影的,请问你运行的SDK版本和手机版本是多少。

你好,该问题我已复现,请看最新回复。

原因分析:

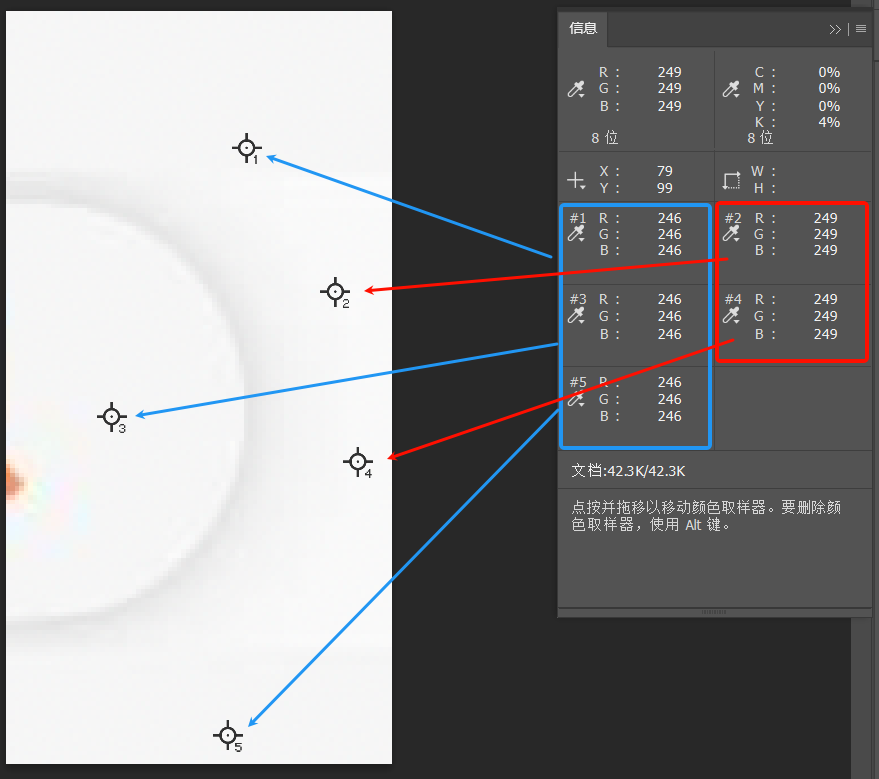

结合以下几个位置的微量颜色差异进行分析,猜测阴影并非由 SegmentButton 本身产生(上图蓝色标注),而是 SegmentButton 组件中的按钮(上图红色标注)

问题复现关键代码:

@State tabOptions: SegmentButtonOptions = SegmentButtonOptions.capsule({
    buttons: [
      { text: 'HSB' },
      { text: '光谱色' },
      { text: 'RGB滑块' }
    ] as ItemRestriction<SegmentButtonTextItem>,
    backgroundColor: Color.White, // 复现问题关键代码 1
    selectedFontColor: Color.Orange,
    selectedBackgroundColor: Color.White // 复现问题关键代码 2
})

解决方案:

不要将以下两个属性设置为相同颜色,或与背景色一致、相似(肉眼难以区分)

selectedBackgroundColor
backgroundColor

太棒了,

很厉害

记得这个组件默认是不带阴影的,可以让我看看你的代码吗?

## 标题

文本内容

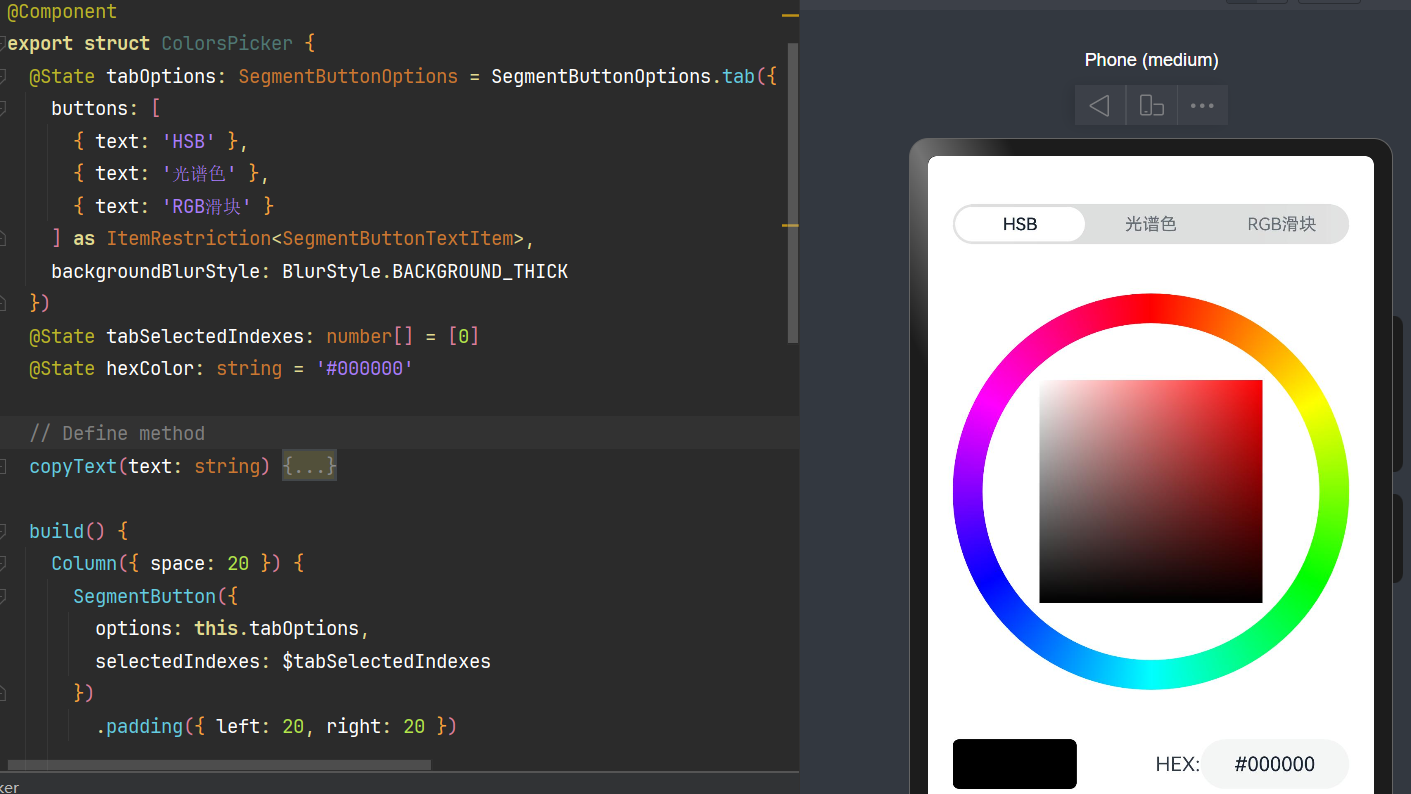

SegmentButtonOptions.capsule 里我只设置了 buttons, multipy, fontColor, selectedFontColor, fontSize, backgroundColor, selectedBackgroundColor

在HarmonyOS Next中,SegmentButton默认不带阴影效果。若要添加阴影,可通过自定义组件样式实现。使用ArkUI的通用属性shadow,设置x、y轴偏移、模糊半径和颜色。示例代码:

SegmentButton()
  .shadow({
    radius: 8,
    color: '#888888',
    offsetX: 2,
    offsetY: 2
  })

阴影参数可调整radius控制模糊程度,offsetX/Y控制方向。颜色值支持RGB或十六进制格式。此效果作用于整个SegmentButton容器,不区分选中/未选状态。

在HarmonyOS Next中,要移除SegmentButton的阴影效果,可以通过修改组件的样式属性来实现。以下是两种常用方法:

  1. 通过XML布局文件设置:
<SegmentButton
    ohos:shadow_radius="0dp"
    ohos:shadow_color="#00000000"
    ... />
  1. 通过代码动态设置:
SegmentButton segmentButton = (SegmentButton) findComponentById(ResourceTable.Id_segment_button);
segmentButton.setShadowRadius(0);
segmentButton.setShadowColor(Color.TRANSPARENT);

关键点说明:

  • shadow_radius设为0dp可完全移除阴影
  • shadow_color设置为透明色可确保不显示任何阴影效果
  • 这些属性在HarmonyOS 3.0及以上版本中可用

如果使用的是自定义样式,还需要检查样式定义中是否包含阴影相关设置。
