HarmonyOS鸿蒙Next官方屏幕采集demo：AVScreenCaptureScreenRecord克隆下来真机中运行无法成功录屏
HarmonyOS鸿蒙Next官方屏幕采集demo：AVScreenCaptureScreenRecord克隆下来真机中运行无法成功录屏 官方demo地址：https://gitee.com/harmonyos_samples/avscreen-capture-screen-record
我在原代码MyAVScreenCapture/startRecording方法中添加了异常的打印：
this.screenCapture?.on('error', (err) => {
hilog.info(0xFF00, CommonConstants.LOG_TAG, 'Handle exception cases. %{public}d, %{public}s, %{public}s, %{public}s',
err.code, err.name, err.message, err.stack);
})

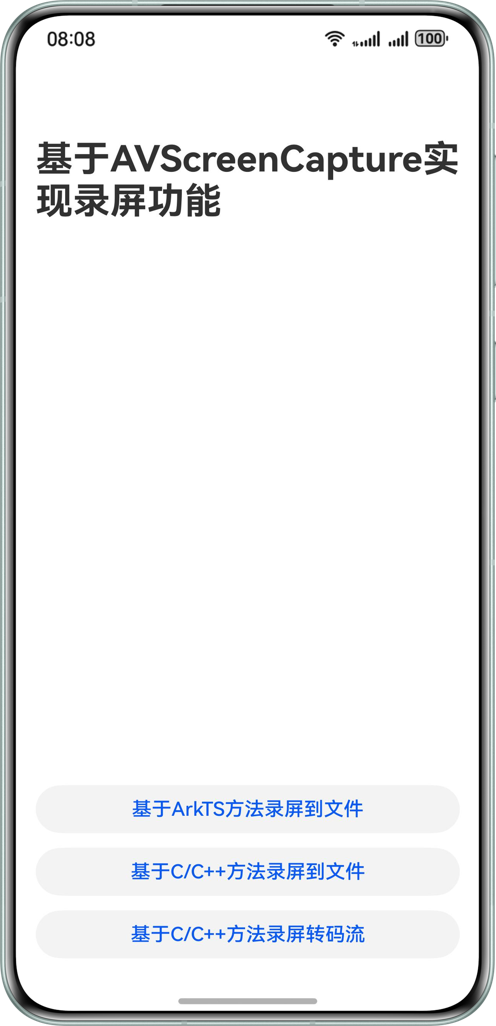

点击进入基于ArkTS方法录屏到文件 页面后进行了录屏操作。
点击录屏图标后的日志打印：
InputKeyFlow I [][OnPointerEvent:215] ac: down: 14735
InputKeyFlow I [P:D:14735][OnPointerEvent:544] id:14735 recv
InputKeyFlow I [] OnInputEvent(86): eid:26,InputId:14735,wid:211,ac:2
AceInputTracking I [(-1:100000:singleton)] pointdown windowId: 211
InputKeyFlow I [] ConsumePointerEventInner(876): InputId:14735,wid:211,pointId:0,srcType:2,rect:[0,0,2800,1840],notify:1
InputKeyFlow I [][OnPointerEvent:215] ac: move: 14736
InputKeyFlow I [(100000:100000:scope)] InputTracking id:14735, fingerId:0, type=0, inject=0, isPrivacyMode=0
InputKeyFlow I [(100000:100000:scope)] InputTracking id:14735, touch test hitted node info: fingerId: 0{ tag: page, depth: 6 };{ tag: Button, depth: 13 };
InputKeyFlow I [(100000:100000:scope)] InputTracking id:14735, touch test hitted recognizer type info: recognizer type ClickRecognizer node info: { tag: Button };
InputKeyFlow I [(100000:100000:scope)] Id:14735, click 0 down, ETF: 0, CTP: 0, state: 0
AceInputTracking I [(100000:100000:scope)] Consumed new event id=14735 in ace_container, lastEventInfo: id:14733
InputKeyFlow I [][OnPointerEvent:215] ac: move, first: 14737-(2025-11-20 18:05:02.003ms), count: 1, last: ac: up: 14738
InputKeyFlow I [P:U:14738][OnPointerEvent:544] id:14738 recv
InputKeyFlow I [] OnInputEvent(86): eid:27,InputId:14738,wid:211,ac:4
InputKeyFlow I [] ConsumePointerEventInner(876): InputId:14738,wid:211,pointId:0,srcType:2,rect:[0,0,2800,1840],notify:1
InputKeyFlow I [(100000:100000:scope)] InputTracking id:14738, fingerId:0, type=1, inject=0, isPrivacyMode=0
InputKeyFlow I [(100000:100000:scope)] Id:14738, click 0 up, state: 0
AceGesture I [(100000:100000:scope)] Click try accept
InputKeyFlow I [(100000:100000:scope)] Click accepted, tag: Button
AVScreenCaptureNapi I #172 JsCreateAVScreenRecorder success
InputKeyFlow I [(100000:100000:scope)] id: 0, log: {types: Click, node: Button, prcd: Down, state: READY, prcd: Up, state: SUCCEED}
AceInputTracking I [(100000:100000:scope)] Consumed new event id=14738 in ace_container, lastEventInfo: id:14737
AVScreenCaptureNapi I #40 0x819A20Instances create
HiTraceC I [a92ab4e7ce03446 0 0]HiTraceBegin name:AVScreenCapture flags:0x00.
TaskQueue I [a92ab4e7ce03446 0 0]#45 0x6A02C0 Instance thread started [OS_AVScreenCaptureNapi], curTimeUs: [31492687889065]
AVScreenCaptureCallback I [a92ab4e7ce03446 0 0]#28 0x6D7CC8Instances create
AVScreenCaptureNapi I [a92ab4e7ce03446 0 0]#117 Constructor success
MY_TAG I ScreenCapture has been created successfully.
AVScreenCaptureNapi I #463 JsSetEventCallback Start
AVScreenCaptureNapi I #586 argCount:2
AVScreenCaptureCallback I #73 Set callback type: stateChange
AVScreenCaptureNapi I #494 JsSetEventCallback set callback stateChange End
AVScreenCaptureNapi I #463 JsSetEventCallback Start
AVScreenCaptureNapi I #586 argCount:2
AVScreenCaptureCallback I #73 Set callback type: error
AVScreenCaptureNapi I #494 JsSetEventCallback set callback error End
MY_TAG I startRecording captureConfig:
2800
1840
76
10000000
48000
2
96000
0
AVScreenCaptureNapi I #277 Js Init Start
AVScreenCaptureNapi I #586 argCount:1
AVScreenCaptureNapi I #976 get audioSampleRate : 48000!
AVScreenCaptureNapi I #660 input audioSampleRate 48000
AVScreenCaptureNapi I #976 get audioChannelCount : 2!
AVScreenCaptureNapi I #670 input audioChannelCount 2
AVScreenCaptureNapi I #976 get audioBitrate : 96000!
AVScreenCaptureNapi I #679 input audioBitrate 96000
AVScreenCaptureNapi I #976 get displayId : 0!
AVScreenCaptureNapi I #701 input displayId 0
AVScreenCaptureNapi I #976 get videoBitrate : 10000000!
AVScreenCaptureNapi I #707 input videoBitrate 10000000
TaskQueue I #153 Enter TaskProcessor [OS_AVScreenCaptureNapi], tid_: (13029)
AVScreenCaptureNapi I #956 can not find preset property
AVScreenCaptureNapi I #713 input videoCodec 2
AVScreenCaptureNapi I #976 get frameWidth : 2800!
AVScreenCaptureNapi I #976 get frameHeight : 1840!
AVScreenCaptureNapi I #720 input frameWidth 2800, frameHeight 1840
AVScreenCaptureNapi I #779 check video frame get displayInfo width:2800,height:1840,density:400
AVScreenCaptureNapi I #726 input formatted frameWidth 2800, frameHeight 1840
AVScreenCaptureNapi I #956 can not find fillMode property
AVScreenCaptureNapi I #826 AVScreenCaptureNapi::GetScreenCaptureFillMode in!
AVScreenCaptureNapi I #837 AVScreenCaptureNapi::GetScreenCaptureFillMode succeed, screenCaptureFillMode: 0
AVScreenCaptureNapi I #732 input screenCaptureFillMode 0
AVScreenCaptureNapi I #748 input url fd://76
AVScreenCaptureNapi I #317 Js Init End
AVScreenCaptureNapi I #534 Init Start
ScreenCaptureImpl I #275 ScreenCaptureImpl: 0x725E38InitCaptureFile start, url:<private>, videoEncInfo.audioBitrate:96000, videoEncInfo.audioCodecformat:3, innerCapInfo.audioSampleRate:48000, innerCapInfo.audioChannels::2, micCapInfo.audioSampleRate:48000, micCapInfo.audioChannels:2, videoCapInfo.displayId:0, videoCapInfo.taskIDs.size:0, videoCapInfo.videoSource:2.
AVScreenCaptureNapi I #542 Init End
AVScreenCaptureNapi I #312 The js thread of init finishes execution and returns
AVScreenCaptureNapi I #905 Js StartRecording Start
AVScreenCaptureNapi I #586 argCount:0
AVScreenCaptureNapi I #945 Js StartRecording End
AVScreenCaptureNapi I #887 StartRecording Start
ScreenCaptureImpl I #121 ScreenCaptureImpl:0x725E38 isPrivacyAuthorityEnabled:1
AVScreenCaptureNapi I #898 StartRecording End
AVScreenCaptureNapi I #940 The js thread of StartRecording finishes execution and returns
WMSFocus I [] UpdateFocus(1073): Report update focus: 0, id: 211
Ace I [(-1:100000:singleton)] [com.example.avscreencapturescreenrecord][entry][100000]: window unfocus
UIAbility E [ui_ability_impl.cpp:414]null applicationContext or lifecycleCallback
Ace I [(100000:100000:scope)] Update application state , state: ON_INACTIVE
AceFocus I [(100000:100000:scope)] Window id: 211 lost focus.
WMSFocus I [] NotifyHighlightChange(1654): windowId: 211, isHighlight: 0,
OHOS::RS I RSUIDirector::ProcessMessages messageId:44, cmdCount:2, instanceId:100000
OHOS::RS I RSUIDirector::PostTask messageId:44, cmdCount:2, instanceId:100000
thp_extra I ThpExtraRunCommand[122]ver:5.0.8ThpExtraRunCommand, cmd:THP_UpdateViewsLocation, param:thp#Location#2383,117,2483,217#40,117,140,217
thp_extra I InitTpInterfaces[33]InitTpInterfaces+
thp_extra E InitTpInterfaces[35]inited +
允许录屏权限后的日志打印（开始录屏）：
WMSFocus I [] UpdateFocus(1073): Report update focus: 1, id: 211
UIAbility E [ui_ability_impl.cpp:414]null applicationContext or lifecycleCallback
Ace I [(-1:100000:singleton)] [com.example.avscreencapturescreenrecord][entry][100000]: window focus
Ace I [(100000:100000:scope)] Update application state , state: ON_ACTIVE
accessibility_asacfwk I [(SubscribeStateObserver:463)]Observer has subscribed!
AceAccessibility I [(100000:100000:scope)] the result of SubscribeStateObserver:4001
AceFocus I [(100000:100000:scope)] Window id: 211 get focus.
AceFocus I [(100000:100000:scope)] Request focus on current focus view: NavDestination/139
WMSFocus I [] NotifyHighlightChange(1654): windowId: 211, isHighlight: 1,
AceFocus I [(100000:100000:scope)] WinFocusMove end, NavDestination/secure_field onBlur, NavDestination/secure_field onFocus, start: 1, end: 1, update: 2
AceKeyboard I [(100000:100000:scope)] current focus node info : (NavDestination/139).
AceKeyboard I [(100000:100000:scope)] Normal Window focus first, set focus flag to window.
AceKeyboard I [(100000:100000:scope)] Trigger Window Focus Callback
AceKeyboard I [(100000:100000:scope)] need keyboard : 0.
WMSKeyboard I [] operator()(3035): isNeedKeyboard: 0, keepKeyboardFlag: 0
WMSKeyboard I [] RequestInputMethodCloseKeyboard(3003): Notify InputMethod framework close keyboard start.
WMSKeyboard I [] RequestInputMethodCloseKeyboard(3006): Notify InputMethod framework close keyboard end.
OHOS::RS E FlushImplicitTransaction return, [renderServiceClient_:1, transactionData empty:1]
AVScreenCaptureCallback I #95 OnError is called, name: 0, error message: 6
AVScreenCaptureCallback I #144 uv_queue_work_with_qos start, errorcode:6 , errormessage:Screen capture failed.:
MY_TAG I Handle exception cases. 6, BusinessError, Screen capture failed., Cannot get SourceMap info, dump raw stack:
================Backtrace================
#00 pc 0000000000742000 /system/lib64/platformsdk/libark_jsruntime.so
#01 pc 0000000000742514 /system/lib64/platformsdk/libark_jsruntime.so
#02 pc 0000000000334540 /system/lib64/platformsdk/libark_jsruntime.so
#03 pc 00000000001b9498 /system/lib64/platformsdk/libark_jsruntime.so
#04 pc 00000000001b8e24 /system/lib64/platformsdk/libark_jsruntime.so
#05 pc 000000000024fd28 /system/lib64/platformsdk/libark_jsruntime.so
#06 pc 00000000006156a0 /system/lib64/platformsdk/libark_jsruntime.so
#07 pc 00000000005df11c /system/lib64/platformsdk/libark_jsruntime.so
#08 pc 0000000000057220 /system/lib64/platformsdk/libace_napi.z.so
#09 pc 00000000000c7898 /system/lib64/module/multimedia/libmedia.z.so
ffrt W 215:~WorkerThread:72 to exit, qos[2]
ffrt W 216:~WorkerThread:72 to exit, qos[2]
ffrt W 217:~WorkerThread:72 to exit, qos[3]
ffrt W 218:~WorkerThread:72 to exit, qos[2]
ffrt W 219:~WorkerThread:72 to exit, qos[3]
点击录屏图标结束后的日志：
InputKeyFlow I [][OnPointerEvent:215] ac: down: 14746
InputKeyFlow I [P:D:14746][OnPointerEvent:544] id:14746 recv
InputKeyFlow I [] OnInputEvent(86): eid:28,InputId:14746,wid:211,ac:2
AceInputTracking I [(-1:100000:singleton)] pointdown windowId: 211
InputKeyFlow I [(100000:100000:scope)] InputTracking id:14746, fingerId:0, type=0, inject=0, isPrivacyMode=0
InputKeyFlow I [] ConsumePointerEventInner(876): InputId:14746,wid:211,pointId:0,srcType:2,rect:[0,0,2800,1840],notify:1
InputKeyFlow I [][OnPointerEvent:215] ac: move: 14747
TunnelClient I in Connect, enter
TunnelClient I in Connect, leave
TunnelClient I in Connect, enter
TunnelClient I in Connect, leave
InputKeyFlow I [(100000:100000:scope)] InputTracking id:14746, touch test hitted node info: fingerId: 0{ tag: page, depth: 6 };{ tag: Button, depth: 13 };{ tag: Image, depth: 15 };
InputKeyFlow I [(100000:100000:scope)] InputTracking id:14746, touch test hitted recognizer type info: recognizer type ClickRecognizer node info: { tag: Button };recognizer type LongPressRecognizer node info: { tag: Image }; { tag: Image };recognizer type PanRecognizer node info: { tag: Image };
InputKeyFlow I [(100000:100000:scope)] Id:14746, exclusive 0 type: 0
InputKeyFlow I [(100000:100000:scope)] Id:14746, parallel 0 type: 0
InputKeyFlow I [(100000:100000:scope)] Id:14746, sequenced 0 type: 0
InputKeyFlow I [(100000:100000:scope)] Id:14746, LongPress 0 down, state: 0
InputKeyFlow I [(100000:100000:scope)] Id:14746, LongPress 0 down, state: 0
InputKeyFlow I [(100000:100000:scope)] Id:14746, click 0 down, ETF: 0, CTP: 0, state: 0
AceInputTracking I [(100000:100000:scope)] Consumed更多关于HarmonyOS鸿蒙Next官方屏幕采集demo：AVScreenCaptureScreenRecord克隆下来真机中运行无法成功录屏的实战教程也可以访问 https://www.itying.com/category-93-b0.html
4 回复
从你给的日志关键信息可锁定问题本质：
权限已授予：日志显示 isPrivacyAuthorityEnabled:1，说明录屏隐私权限通过校验；
初始化成功：JsCreateAVScreenRecorder success 和 Constructor success 证明录屏实例创建正常；
失败触发点：在 StartRecording 执行后触发 OnError，错误码 6 无明确官方文档定义，但结合场景可判定为 录屏配置不兼容设备 或 API 版本适配问题（设备 API 为 5.0.5 (17)，属于鸿蒙 5.0 系列）。
解决：
日志中录屏配置参数存在超设备能力的风险，需按以下标准修改（鸿蒙 5.0 设备对分辨率、码率有严格限制）：
问题配置（日志提取）：
- 分辨率：2800×1840（设备屏幕原生分辨率，录屏编码可能不支持）
- 视频码率：10000000 bps（10Mbps，过高导致编码失败）
- 音频码率：96000 bps（部分设备仅支持 64kbps）
// 修改录屏配置 CaptureConfig，适配鸿蒙5.0设备
const captureConfig: AVScreenCaptureConfig = {
displayId: 0, // 保持默认
frameWidth: 1920, // 降低分辨率（设备支持的主流编码分辨率）
frameHeight: 1080, // 1080P 兼容所有鸿蒙5.0+设备
videoBitrate: 5000000, // 视频码率降至5Mbps（平衡画质与兼容性）
videoCodec: VideoCodec.H264, // 明确指定 H264 编码（避免默认编码不兼容）
audioSampleRate: 48000, // 保持不变（设备支持）
audioChannelCount: 2, // 保持不变
audioBitrate: 64000, // 音频码率降至64kbps（鸿蒙5.0设备推荐值）
url: "fd://76" // 保持原文件描述符
};
更多关于HarmonyOS鸿蒙Next官方屏幕采集demo：AVScreenCaptureScreenRecord克隆下来真机中运行无法成功录屏的实战系列教程也可以访问 https://www.itying.com/category-93-b0.html
系统架构设计
概述
本文档描述了系统的整体架构设计，包括组件交互、数据流和部署结构。
核心组件
前端服务
- 用户界面层
- API网关
- 负载均衡器
后端服务
- 业务逻辑处理
- 数据访问层
- 缓存服务
数据存储
- 关系型数据库
- NoSQL数据库
- 文件存储系统
架构特点
- 微服务架构
- 水平可扩展
- 高可用性设计
- 安全防护机制
部署方案
- 容器化部署
- 自动化运维
- 监控告警系统
技术栈
- 前端：React, Vue.js
- 后端：Java, Spring Boot
- 数据库：MySQL, Redis
- 中间件：Kafka, RabbitMQ
鸿蒙Next的AVScreenCaptureScreenRecord功能需要用户手动授权屏幕录制权限。请在"设置-应用-权限管理"中为您的应用开启"屏幕录制"权限。若权限已开启但仍无法录屏，请检查设备系统版本是否支持AVScreenCapture接口，部分鸿蒙Next Beta版本可能存在兼容性问题。录屏功能还需确保应用已配置正确的权限声明，并在manifest文件中声明ohos.permission.CAPTURE_SCREEN权限。
根据日志分析，录屏失败的主要原因是错误码6：“Screen capture failed”。这个错误通常与屏幕采集的底层权限或配置相关。
从日志可以看到：
- AVScreenCapture初始化成功
- 权限检查通过（isPrivacyAuthorityEnabled:1）
- 开始录制后立即触发了错误回调
问题可能出现在以下几个方面：
分辨率配置问题： 当前配置的分辨率2800x1840可能超出了设备支持的范围。建议尝试使用标准分辨率如1920x1080或1280x720。
文件路径权限： 虽然您提到文件写入正常，但录屏需要特定的文件描述符权限。确保使用应用沙箱内的有效路径。
API版本兼容性： API 5.0.5(17)可能存在已知的屏幕采集问题。建议检查是否有更新的API版本可用。
建议修改： 在captureConfig中降低分辨率和码率：
- 将2800x1840改为1920x1080
- 视频码率从10000000降低到5000000
- 音频码率从96000降低到64000
同时确认设备系统版本与HarmonyOS Next SDK的兼容性，某些设备可能需要特定的系统更新才能正常使用屏幕采集功能。
