HarmonyOS鸿蒙Next中列表输入框TextInput刷新数据的问题

HarmonyOS鸿蒙Next中列表输入框TextInput刷新数据的问题

export class ItemBean {
  aaa?: string
  bbb?: string
}

@Component
export struct TestPage {
  @State msg: ItemBean[] = []

  aboutToAppear() {

    let a1 = new ItemBean
    a1.aaa = '哈哈哈'
    a1.bbb = '呵呵呵'

    let a2 = new ItemBean
    a2.aaa = '大大大'
    a2.bbb = '滚滚滚'

    this.msg.push(a1, a2)

  }

  build() {

    NavDestination() {
      Column() {

        Grid() {
          ForEach(this.msg, (item: ItemBean, index) => {
            GridItem() {
              Row() {

                Text(item.aaa)
                  .fontColor($r('app.color.color_ef3838'))
                  .fontSize(12)
                  .maxLines(1)
                  .textOverflow({ overflow: TextOverflow.Ellipsis })

                TextInput({ text: item.bbb }).onChange((value: string) => {
                  item.aaa += value
                  // this.msg = [...this.msg]
                })
                  .layoutWeight(1)
              }
            }
          })
        }.layoutDirection(GridDirection.Column)
        .width('100%')
        .scrollBar(BarState.Off)
        .columnsTemplate('1fr 1fr')

      }
      .backgroundColor($r('app.color.color_f9f9f8'))
      .layoutWeight(1)
    }.backgroundColor($r('app.color.color_white'))
    .height('100%')
    .hideTitleBar(true)
  }
}

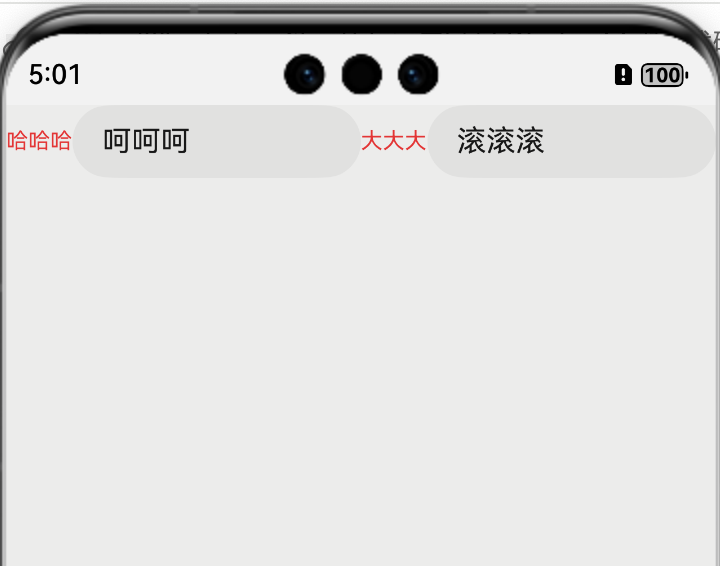

效果图 cke_5051.png

在列表有多个输入框,如何根据输入框内容,然后动态修改同一个item 的text的内容? 一边刷新左边text的内容,又不能打断正在输入。


更多关于HarmonyOS鸿蒙Next中列表输入框TextInput刷新数据的问题的实战教程也可以访问 https://www.itying.com/category-93-b0.html

5 回复

【背景知识】 [@State装饰的变量](https://developer.huawei.com/consumer/cn/doc/harmonyos-guides/arkts-state),或称为状态变量,一旦变量拥有了状态属性,就可以触发其直接绑定UI组件的刷新。当状态改变时,UI会发生对应的渲染改变。[@Observed/@ObjectLink配套使用](https://developer.huawei.com/consumer/cn/doc/harmonyos-guides/arkts-observed-and-objectlink)是用于嵌套场景的观察,主要是为了弥补装饰器仅能观察一层的能力限制,可以用来观察二维数组、数组项class、class的属性是class,这些第二层的属性变化。

【问题定位】

  1. @State装饰器仅能观察到第一层的变化,但是在实际应用开发中,应用会根据开发需要,封装自己的数据模型。对于多层嵌套的情况,比如二维数组、对象数组,或者对象内套对象,他们的第二层的属性变化是无法观察到的。例如:当装饰对象为对象数组时,可以观察到数组本身的赋值和添加、删除、更新数组的变化,但是数组项中属性的赋值观察不到。
  2. 如果想要实现动态渲染,需要使用@Observed/@ObjectLink装饰器:
    • @Observed用于对象数组、数组对象、嵌套对象场景中,观察对象类属性变化,用于修饰类。
    • @ObjectLink装饰器装饰的状态变量用于接收@Observed装饰的类的实例,和父组件中对应的状态变量建立双向数据绑定。注意:@ObjectLink装饰器不能在@Entry装饰的自定义组件中使用。

【解决方案】

  1. 使用@Observed修饰类:
    [@Observed](/user/Observed)
    export class ItemBean {
      aaa?: string
      bbb?: string
      //用来判断是否为首次赋值造成的变化
      isFirst: boolean
      constructor(aaa: string, bbb: string, isFirst: boolean) {
        this.aaa = aaa
        this.bbb = bbb
        this.isFirst = isFirst
      }
    }

  2. 自定义子组件,注意@ObjectLink装饰器不能在@Entry装饰的自定义组件中使用:
    @Component
    struct ItemList{
      [@ObjectLink](/user/ObjectLink) itemBeam: ItemBean
      build() {
        Row(){
          Text(this.itemBeam.aaa)
            .fontColor(Color.Red)
            .fontSize(12)
            .maxLines(1)
            .textOverflow({ overflow: TextOverflow.Ellipsis })
          TextInput({ text: this.itemBeam.bbb }).onChange((value: string) => {
            if(!this.itemBeam.isFirst){
              this.itemBeam.aaa += value
              this.itemBeam.bbb = value
            }
            this.itemBeam.isFirst = false
            // this.msg = [...this.msg]
          })
            .layoutWeight(1)
        }
      }
    }

  3. 在父组件中使用子组件:
    [@Entry](/user/Entry)
    @Component
    export struct TestPage {
      [@State](/user/State) msg: ItemBean[] = []

      aboutToAppear() {
        let a1 = new ItemBean('哈哈哈', '呵呵呵', true)
        let a2 = new ItemBean('大大大', '滚滚滚', true)
        this.msg.push(a1, a2)
      }

      build() {
        NavDestination() {
          Column() {
            Grid() {
              ForEach(this.msg, (item: ItemBean, index) => {
                /*GridItem() {
                  ItemList({itemBeam: item})
                }*/
                ItemList({itemBeam: item})
              })
            }
            .width('100%')
            //.scrollBar(BarState.Off)
            //.columnsTemplate('1fr 1fr')

          }
          .backgroundColor(Color.Gray)
          .layoutWeight(1)
        }.backgroundColor(Color.White)
        .height('100%')
        .hideTitleBar(true)
      }
    }

    【总结】 @State装饰器仅能观察到第一层的变化。对于多层嵌套的情况,比如对象数组等,他们的第二层的属性变化是无法观察到的。@Observed装饰的类,可以观察到属性的变化;@ObjectLink装饰器装饰的状态变量用于接收@Observed装饰的类的实例,和父组件中对应的状态变量建立双向数据绑定

更多关于HarmonyOS鸿蒙Next中列表输入框TextInput刷新数据的问题的实战系列教程也可以访问 https://www.itying.com/category-93-b0.html


问题分析与解决方案

您遇到的问题是直接修改对象属性不会触发UI刷新,而重新赋值整个数组会导致组件重新渲染,打断输入状态。

以下是优化后的代码实现:

export class ItemBean {
  aaa?: string
  bbb?: string
}

@Component
export struct TestPage {
  @State msg: ItemBean[] = []

  aboutToAppear() {
    let a1 = new ItemBean();
    a1.aaa = '哈哈哈';
    a1.bbb = '呵呵呵';

    let a2 = new ItemBean();
    a2.aaa = '大大大';
    a2.bbb = '滚滚滚';

    this.msg = [a1, a2]; // 使用赋值而非push
  }

  build() {
    NavDestination() {
      Column() {
        Grid() {
          ForEach(this.msg, (item: ItemBean, index) => {
            GridItem() {
              // 使用自定义组件处理每个项
              ListItemView({ item: item, index: index })
            }
          }, (item: ItemBean) => JSON.stringify(item))
        }
        .layoutDirection(GridDirection.Column)
        .width('100%')
        .scrollBar(BarState.Off)
        .columnsTemplate('1fr 1fr')
      }
      .backgroundColor($r('app.color.color_f9f9f8'))
      .layoutWeight(1)
    }
    .backgroundColor($r('app.color.color_white'))
    .height('100%')
    .hideTitleBar(true)
  }
}

// 自定义组件处理每个列表项
@Component
struct ListItemView {
  @Param item: ItemBean;
  @Param index: number;
  @Local textValue: string = ''; // 本地状态管理输入框值

  aboutToAppear() {
    this.textValue = this.item.bbb || '';
  }

  build() {
    Row() {
      Text(this.item.aaa) // 显示aaa属性
        .fontColor($r('app.color.color_ef3838'))
        .fontSize(12)
        .maxLines(1)
        .textOverflow({ overflow: TextOverflow.Ellipsis })

      TextInput({ text: this.textValue })
        .onChange((value: string) => {
          this.textValue = value; // 更新本地状态
          this.item.aaa += value; // 修改aaa属性
          this.item.bbb = value; // 同步bbb属性
        })
        .layoutWeight(1)
    }
  }
}

关键优化点

  1. 分离组件结构:将每个列表项提取为独立组件ListItemView,避免全局状态更新导致的整个列表重渲染

  2. 使用本地状态:在ListItemView中使用@Local装饰器管理输入框的值,确保输入流畅不中断

  3. 直接修改对象属性:虽然直接修改对象属性不会自动触发UI更新,但由于我们使用了独立组件,组件内部的Text会响应本地状态变化

  4. 添加唯一键生成器:在ForEach中添加键生成函数,确保每个项有唯一标识

进一步优化建议

如果上述方案仍不能满足需求,可以考虑以下进阶方案:

// 在ItemBean类中添加观察能力
export class ItemBean {
  aaa?: string = '';
  bbb?: string = '';

  // 添加变化监听
  private listeners: ((aaa: string, bbb: string) => void)[] = [];

  // 添加监听器
  addListener(listener: (aaa: string, bbb: string) => void) {
    this.listeners.push(listener);
  }

  // 更新属性并通知监听器
  updateAaa(value: string) {
    this.aaa = value;
    this.notifyListeners();
  }

  updateBbb(value: string) {
    this.bbb = value;
    this.notifyListeners();
  }

  // 通知所有监听器
  private notifyListeners() {
    this.listeners.forEach(listener => {
      listener(this.aaa || '', this.bbb || '');
    });
  }
}

// 在ListItemView组件中
@Component
struct ListItemView {
  @Param item: ItemBean;
  @Param index: number;
  @State localAaa: string = '';
  @State localBbb: string = '';

  aboutToAppear() {
    this.localAaa = this.item.aaa || '';
    this.localBbb = this.item.bbb || '';

    // 注册监听器
    this.item.addListener((aaa, bbb) => {
      this.localAaa = aaa;
      this.localBbb = bbb;
    });
  }

  build() {
    Row() {
      Text(this.localAaa)
        .fontColor($r('app.color.color_ef3838'))
        .fontSize(12)
        .maxLines(1)
        .textOverflow({ overflow: TextOverflow.Ellipsis })

      TextInput({ text: this.localBbb })
        .onChange((value: string) => {
          this.item.updateAaa((this.item.aaa || '') + value);
          this.item.updateBbb(value);
        })
        .layoutWeight(1)
    }
  }
}

这个进阶方案通过给ItemBean添加监听机制,实现了更精细的状态管理,确保UI能够响应数据变化而不打断输入体验。

感谢解答,虽然进一步的优化也可以实现我的需求,但代码较于繁琐。还是采用二楼的@Observed+@ObjectLink双向数据绑定,简单明了,也易于维护。

在HarmonyOS Next中,TextInput组件数据刷新需使用状态管理。通过@State装饰器声明响应式数据,当数据变更时,UI自动更新。若需手动控制,可在ArkUI中调用组件刷新方法,或使用@Link进行父子组件同步。确保数据源变更后,关联的TextInput能正确响应。

在HarmonyOS Next中,你遇到的问题是由于ArkUI的响应式更新机制导致的。当TextInput的onChange事件中直接修改item.aaa时,由于item对象本身不是响应式数据源(@State@Link等装饰的变量),UI不会自动刷新。

解决方案:

  1. 使用@State装饰数组元素: 将ItemBean的属性改为@State装饰,或者使用@Observed@ObjectLink装饰类。

    [@Observed](/user/Observed)
    class ItemBean {
      [@State](/user/State) aaa: string = '';
      bbb: string = '';
    }

    @Component
    export struct TestPage {
      [@State](/user/State) msg: ItemBean[] = []

      // ... aboutToAppear保持不变

      build() {
        // ForEach部分改为:
        ForEach(this.msg, (item: ItemBean, index) => {
          GridItem() {
            Row() {
              Text(item.aaa)
                // ... 样式设置

              TextInput({ text: item.bbb }).onChange((value: string) => {
                item.aaa += value  // 现在这会触发UI更新
              })
            }
          }
        })
      }
    }

  2. 如果不想用@Observed,可以创建新数组触发更新: 取消注释你代码中的 // this.msg = [...this.msg],但这会重新渲染整个列表,可能影响输入体验。

  3. 更推荐的做法:使用索引更新特定项

    TextInput({ text: item.bbb }).onChange((value: string) => {
      this.msg[index].aaa += value
      this.msg = this.msg.slice() // 浅拷贝触发更新
    })


关键点:

  • ArkUI需要响应式数据变化才能触发UI更新
  • 直接修改普通对象的属性不会通知框架
  • @Observed/@ObjectLink@State 装饰器可以建立对象属性的响应式关联
  • 对于列表项更新,保持数据源的响应性是核心

这样修改后,TextInput输入时会实时更新同项的Text显示,且不会打断输入。
